Product Description

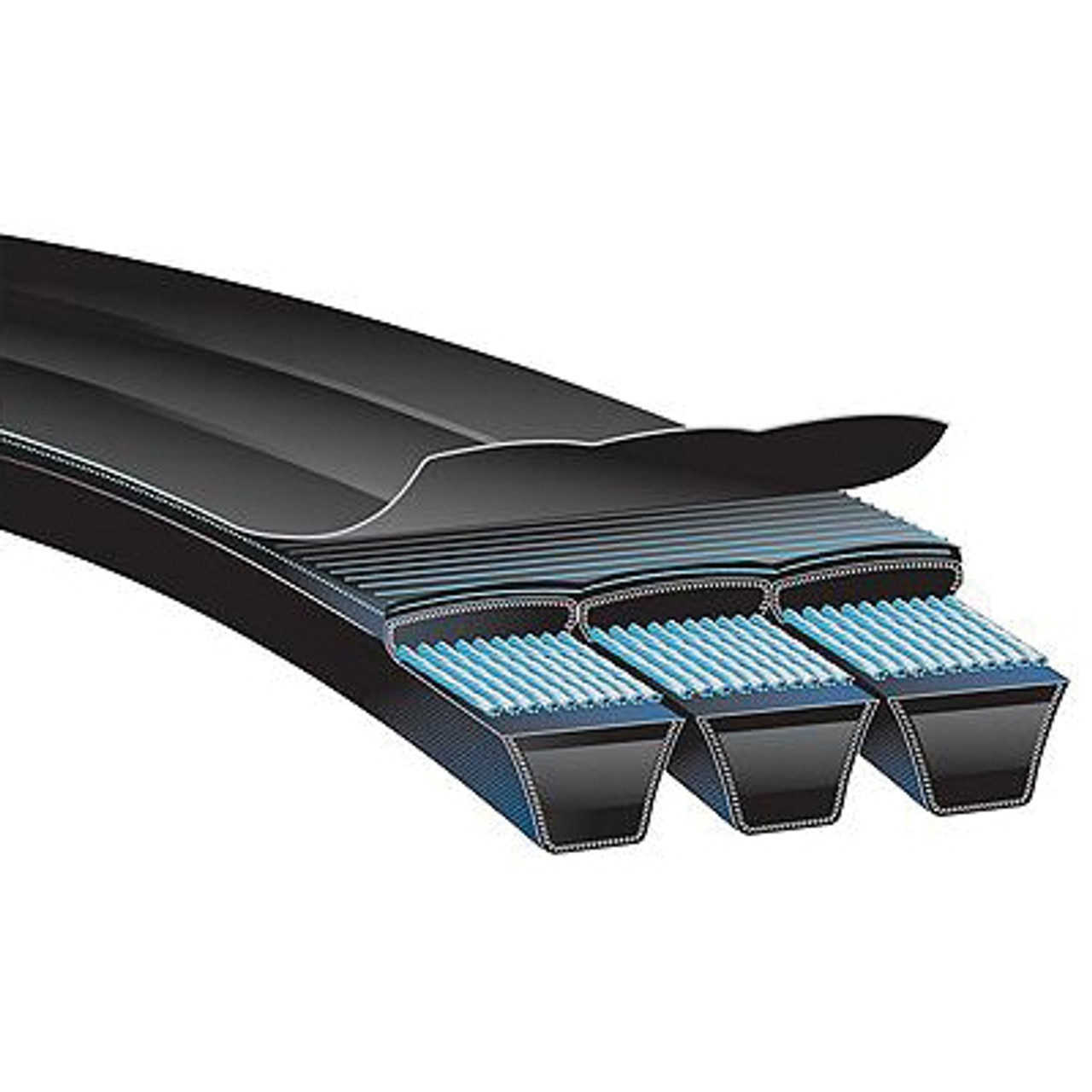

Classical V-Belt, Banded, Heavy Duty, C Section, 7/8 in Wd Top, 17/32 in Thk, 5 -Rib, -22 to 140 deg F, 5 -Band, EPDM, Polyester Reinforced, Black Color
Gates® Hi-Power® PowerBand™ V-Belt construction allows multiple belts to function as a single unit, with even load distribution and each strand fitting securely in the sheave groove. It offers a solution for drives where single belts vibrate, turn over or jump off the pulleys. They consist of several V-belts joined together by a permanent, high strength tie band offering a tougher more stable solution compared to a single belt.
Product Additional Info
Additional Tech Info
Product Documents
Product Videos
Custom Field
Country of Origin MX
Feature Bullets 1 Flex bonded cords are strongly bonded to the body of the belt resulting in equal load distribution and the absorption of bending stress without cord deterioration
Feature Bullets 10 Better resistance to vibrations
Feature Bullets 2 The Flex-Weave® cover is a patented fabric construction for longer cover life, providing extended protection to the belt core from oil, dirt and heat
Feature Bullets 3 Concave sidewalls provide proper cord support and full contact with the sheave groove for equal loading and uniform wear
Feature Bullets 4 Gates® curves provide full contact with pulley grooves for uniform loading of cords, uniform wear and increased belt life
Feature Bullets 5 The tie band assures high lateral rigidity, guiding the belt in a straight line and preventing it from coming off the drive
Feature Bullets 6 Static conductive (ISO 1813) and can as such be used in the conditions described in the directive 2014/34/EU-ATEX
Feature Bullets 7 Savings in drive space and weight due to high transmission efficiency
Feature Bullets 8 High stability and smooth running on the toughest drives
Feature Bullets 9 Important design economies possible
Manufacture Name Gates Corporation
Package Quantity 5 pkg_qty
RSC # 24300512
Standards ISO, RMA, REACH, ROHS
Unit of Measure EA
Web Item Flag S
Manufacture Part Number 5/C120
UPC 072053285994
