Product Description
GATES Wedge V-Belt, 4/8V3350 Banded, Heavy Duty, 8V Section, 1.02 in Wd Top, 335 in Lg Outside, 0.91 in Thk, 4 -Rib, 15.916 in Min Dia Pulley, -30 to 180 deg F, 4 -Band
Combines the strength of a wrapped belt construction with the economies of a narrow section V-belt. Transmits more power in a given space and allows more compact drive design than classical section V-belts. In short, it offers you more power and considerably reduces the space needed. This significantly cuts the overall drive cost. Super HC™ V-belts also have exclusive Gates construction features for longer life on your drives.
Product Additional Info
Additional Tech Info
Product Documents
Product Videos
Custom Field
Sub Brand Super HC
Country of Origin MX

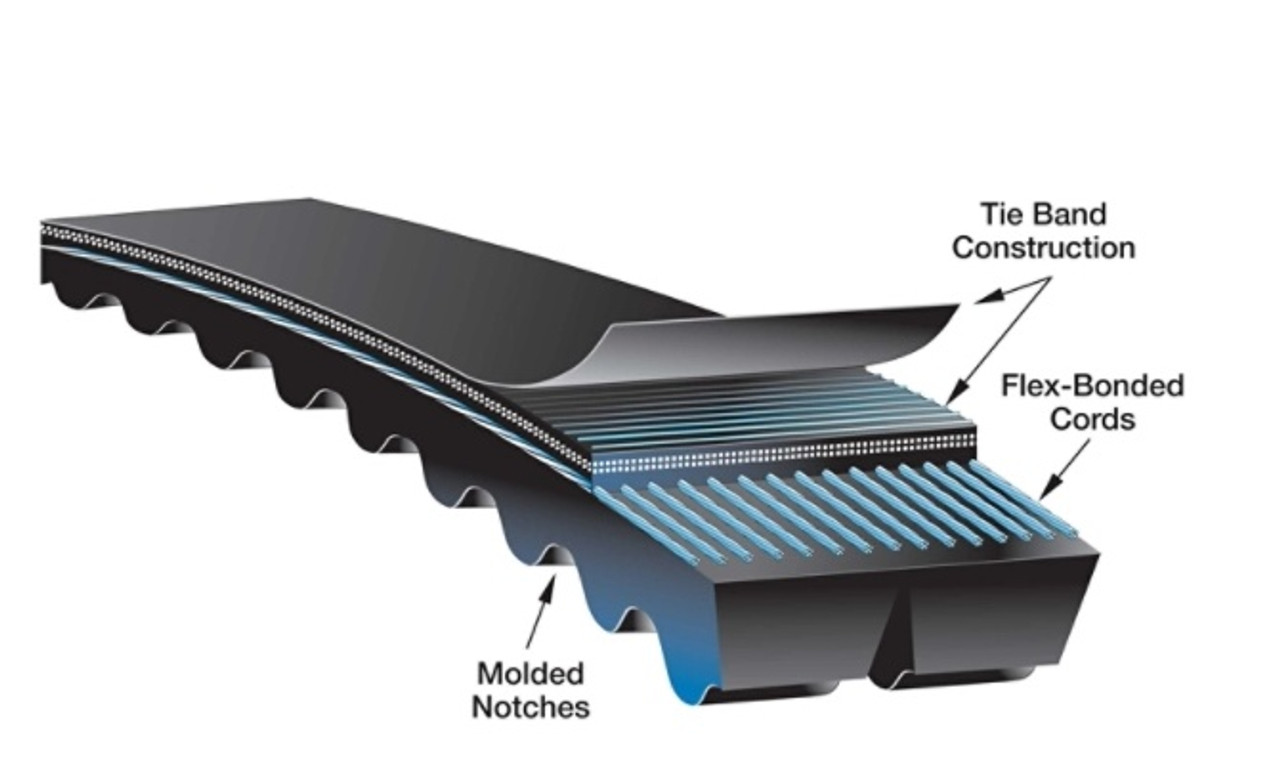

Feature Bullets 1 Flex bonded cords are strongly forged to the belt body, resulting in equal load distribution, resistance to fatigue and shock loads and the absorption of bending stress without cord deterioration
Feature Bullets 2 Arched top, concave sidewalls and rounded corners provide uniform tensile loading and uniform pulley sidewall contact for excellent belt service and reduced pulley wear
Feature Bullets 3 Recommended for use on all industrial heavy-duty, narrow section V-belt drives and particularly where space, weight and horsepower capacity are critical
Feature Bullets 4 Up to 300% capacity increase over classical belts
Feature Bullets 5 Meets ARPM/RMA IP-3-2 oil and heat resistant standards and IP-3-3 static conductivity requirements
Manufacture Name GATES RUBBER
Package Quantity 1/Pack
RSC # 24707177
Standards ARPM/RMA
Unit of Measure EA
Outside Length 335.0000
Manufacturer URL https://www.gates.com/us/en/search.p.9386-000000-000000.v.9387-04335.html
Web Item Flag S
Manufacture Part Number 4/8V3350
UPC 072053279245
