Product Description

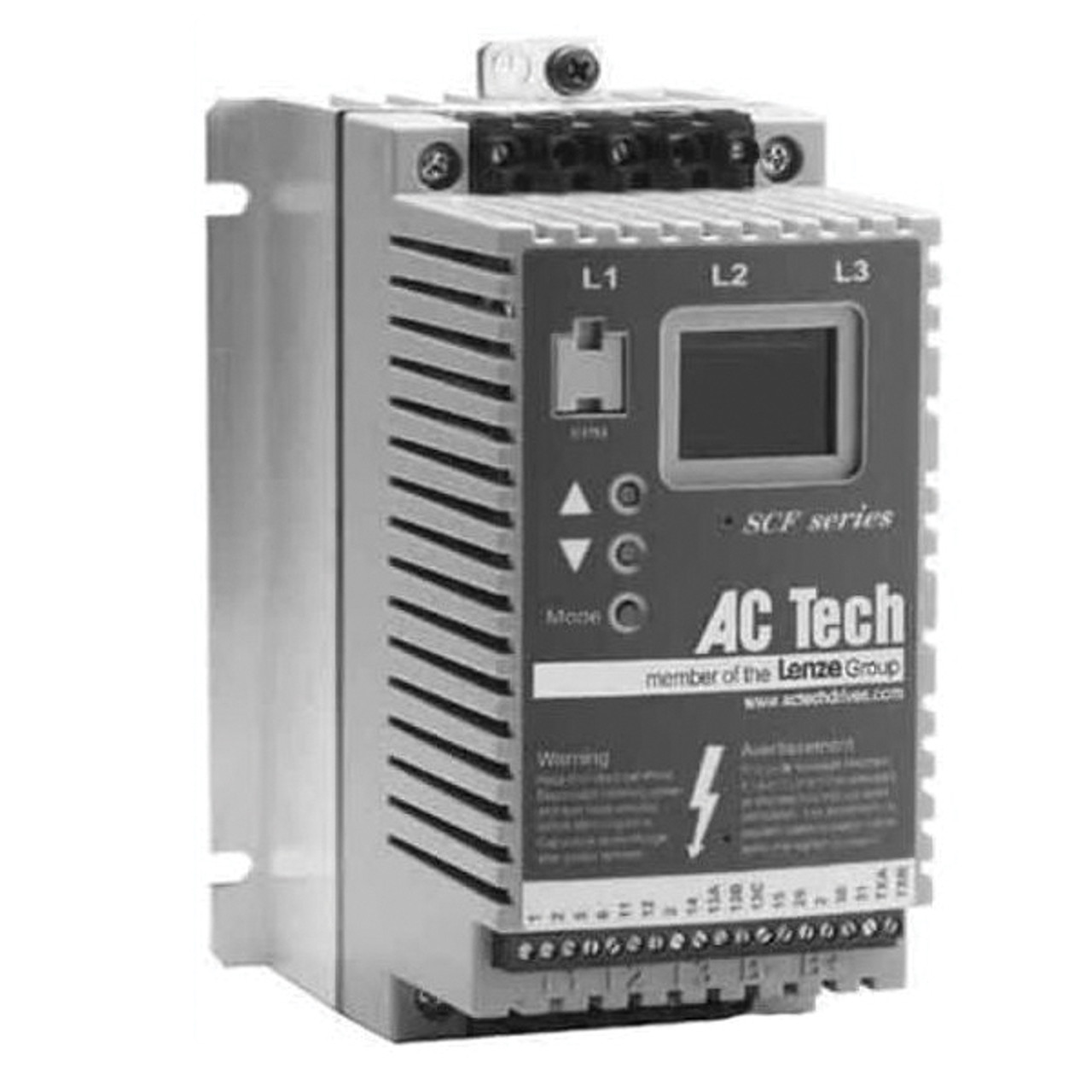

Variable Frequency Drive, Enclosed, 200 to 240 VAC, 4.2 A, 1 hp, 3 in Wd, 5 in Dp, 6 in Ht, IP20 Enclosure, LED Display, DIN Rail Mount
AC Tech's SCF series of drives are easy to use right out of the box, but they can also be customized one of four ways: from the front of the drive, from the remote keypad, from a PC (with free TechLink software) or from the innovative EPM programmer. These variable frequency drives have 18 isolated I/O terminals (5 logic inputs, 2 logic outputs, 2 analog inputs, 2 analog outputs and RS485 Modbus serial communication.
Product Additional Info
Additional Tech Info
Product Documents
Product Videos
Custom Field
Feature Bullets 1 8 preset speeds
Feature Bullets 10 Forward/reverse
Feature Bullets 3 Relay or transistor output(s) depending on model
Feature Bullets 4 3 or more programmable inputs
Feature Bullets 5 Current limit to 180% (200% TCF) w/foldback
Feature Bullets 6 Fault history (last 8)
Feature Bullets 7 Isolated control terminals
Feature Bullets 8 Highly visible 3 digit led display
Feature Bullets 9 Quiet motor operation
Manufacture Name Lenze Americas Corp
RSC # 30006001
Unit of Measure EA
Web Item Flag P
Manufacture Part Number SF210Y
