Product Description

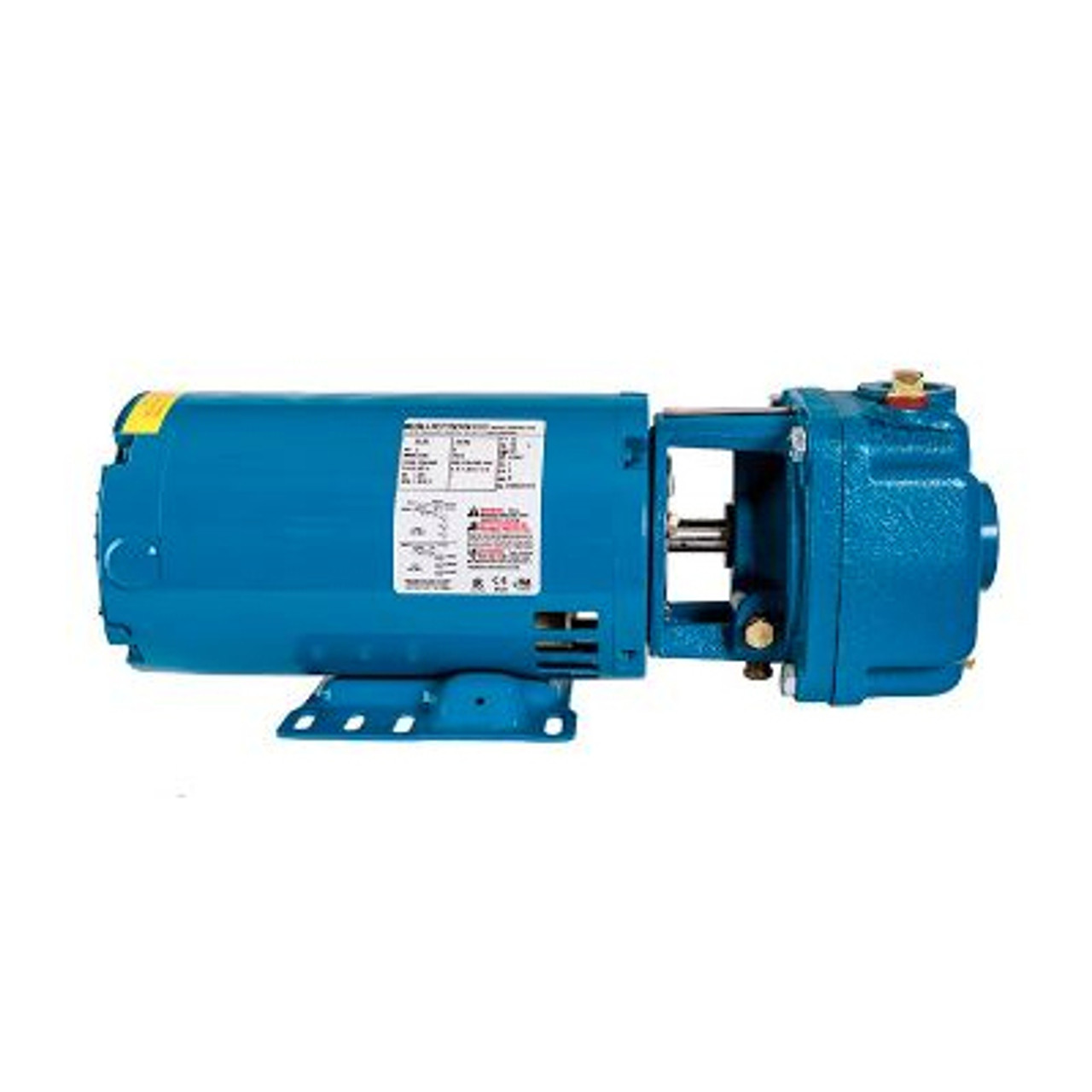

Turbine Pump, Close Coupled, 32-1/2 gpm, 1-1/4 in NPT Inlet, 1 in NPT Outlet, 350 ft Max Head, 2 hp, 230/460 V, 60 Hz, 250 psi Max, 3450 rpm, 250 psi Case, 3 Phase
Shop BURKS exclusive unique regenerative type turbine pumps. Designed to handle clear water in addition to and many other non-abrasive, lower viscosity liquids on high pressure. As well as low capacity applications with the greatest possible efficiency.BURKS is the only turbine pump with Life-Lok® External Impeller Adjustment. This feature allows re adjustment of impeller without disturbing piping, disassembling pump or replacing parts. This, as a result, gives up to 40% longer service life than turbine pumps of other designs.
Product Additional Info
Additional Tech Info
Product Documents
Product Videos
Custom Field
Feature Bullets 1 Self-priming pump
Feature Bullets 2 Compact and space-saving size
Feature Bullets 3 No coupling so this eliminates misalignment problems
Feature Bullets 4 Dependable carbon/ceramic mechanical shaft seal for same temperatures to 225 deg F (107 deg C)
Feature Bullets 5 Bronze impeller with monel blades - therefore the only moving part
Feature Bullets 6 Bronze raceway with cast-in vortex pockets - will not vapor lock
Feature Bullets 7 Easy to service as a result
Feature Bullets 8 Especially relevant, Every pump factory tested
Manufacture Name BURKS PUMPS
RSC # 37602620
Unit of Measure EA
Maximum Head 350.0000
Enclosure Type Open Drip-Proof
Manufacturer URL https://burkspumpcatalog.com/product/320cs6m/
Web Item Flag S
Manufacture Part Number PH320CS6M
