Product Description
Timing Belt, Heavy, 60 in Lg, 3 in Wd, 3.77 in Min Dia Pulley, -30 to 180 deg F, Neoprene, Fiberglass Reinforced, Black , 120 -Teeth, 1/2 in Pitch
PowerGrip™ Twin Power™ Timing Belts are suitable for all industrial serpentine applications that require rotation reversal in some driven shafts. Twin Power belts have precision-formed elastomeric teeth on both sides to provide high-loading capacity synchronization from both driving surfaces. Due to its double and directly opposite teeth, Twin Power synchronous belts ensure high loading capacity on contra-rotating drives and ensure smooth running and high flexibility. Gates PowerGrip Twin Power belts are designed to perform at high speeds and in extreme temperatures, with a larger tooth profile for increased performance capacity.
Product Additional Info
Additional Tech Info
Product Documents
Product Videos
Custom Field
Sub Brand PowerGrip
Country of Origin US

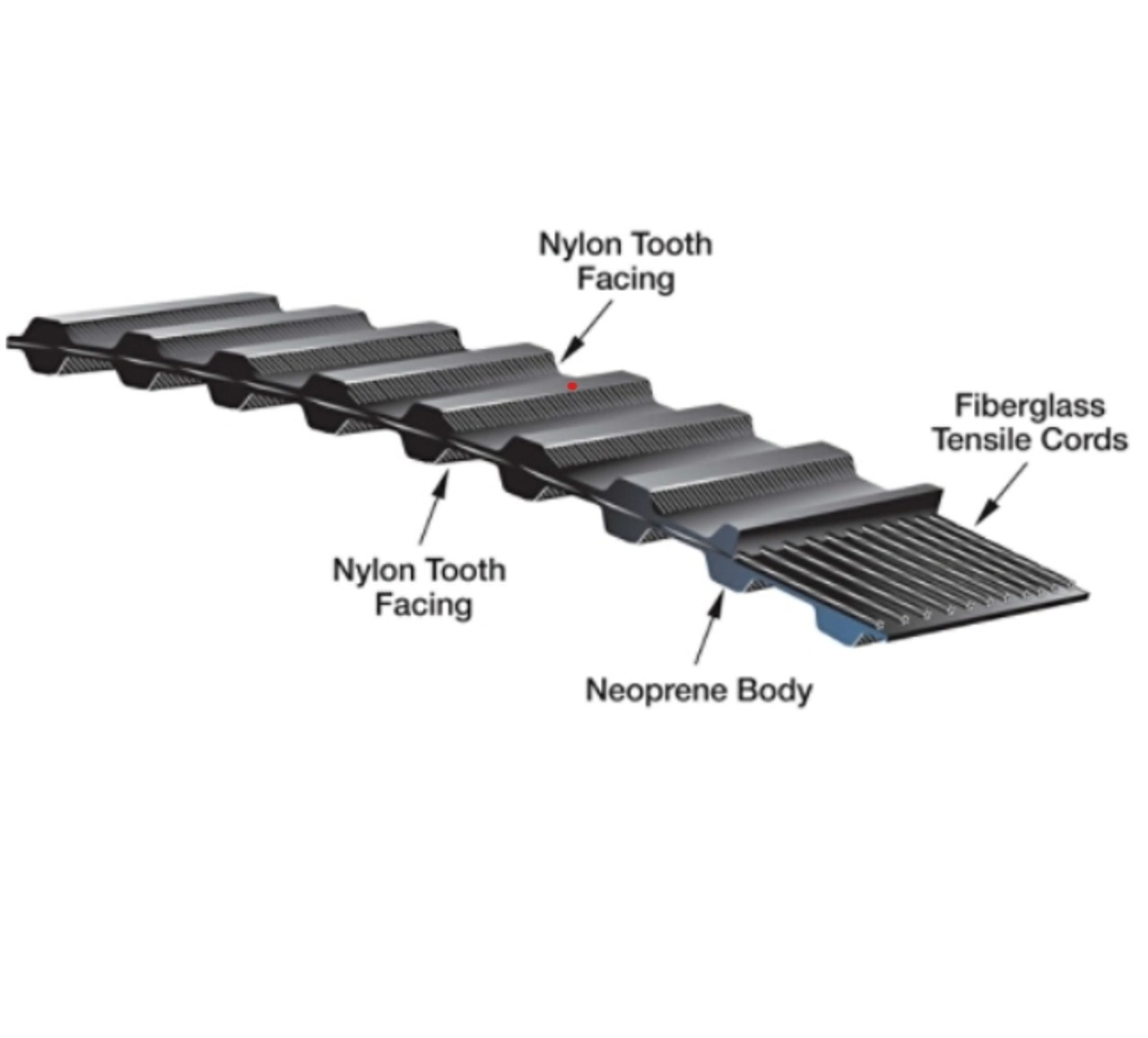

Feature Bullets 1 Fiberglass tensile cord provides high strength, excellent flex life and high resistance to elongation
Feature Bullets 2 Gates® Twin Power® belts have nylon facing on both tooth surfaces providing equal load carrying capabilities on either side of the belt
Feature Bullets 3 Quieter than roller chain drives and eliminates lubrication and re-tensioning to reduce maintenance and labor
Feature Bullets 4 Neoprene body provides protection against grime, grease, oil and moisture
Feature Bullets 5 Belt capacity is equal to standard single-sided PowerGrip® timing belts
Feature Bullets 6 Twin Power® belts have teeth on both sides to provide synchronization from both driving surfaces
Manufacture Name GATES RUBBER
Overall Length 60 Inch
Package Quantity 10/Carton
RSC # 24803635
Standards REACH, ROHS, RMA
Unit of Measure EA
Manufacturer URL https://www.gates.com/us/en/search.p.9246-000000-000000.html
Width 3 Inch
Web Item Flag S
Manufacture Part Number TP600H300
UPC 072053625400
