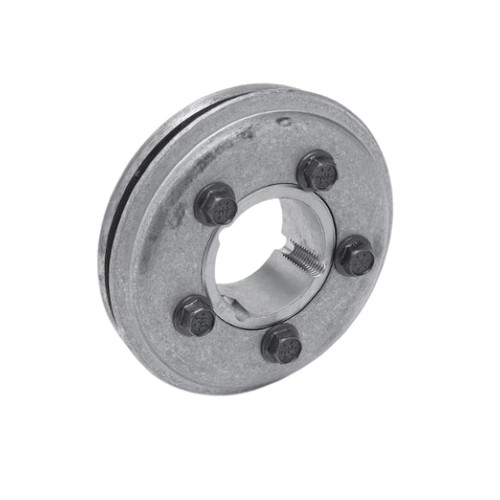

DODGE PARA FLEX PX40 Taper-Lock Flange, Type H, 4-1/4 in od, 0.88 in Lg Thru Bore, Cast Iron

Dodge's PARA-FLEX Couplings employ a molded, non-lubricated elastomeric flexing member loaded in shear. They have Taper-Lock flanges that offer reversible flanges. Torque is transmitted through composite element system that is reinforced with torque carrying tension cords and split end reinforcement. The flexible member is compounded natural or neoprene rubber with textile cord reinforcement throughout and has an extra layer of reinforcement adjacent to the split for added durability. The compound of natural rubber element shall be suitable for operation in ambient temperature from -45 to 180 deg F, Neoprene -40 to 210 deg F.
