Product Description

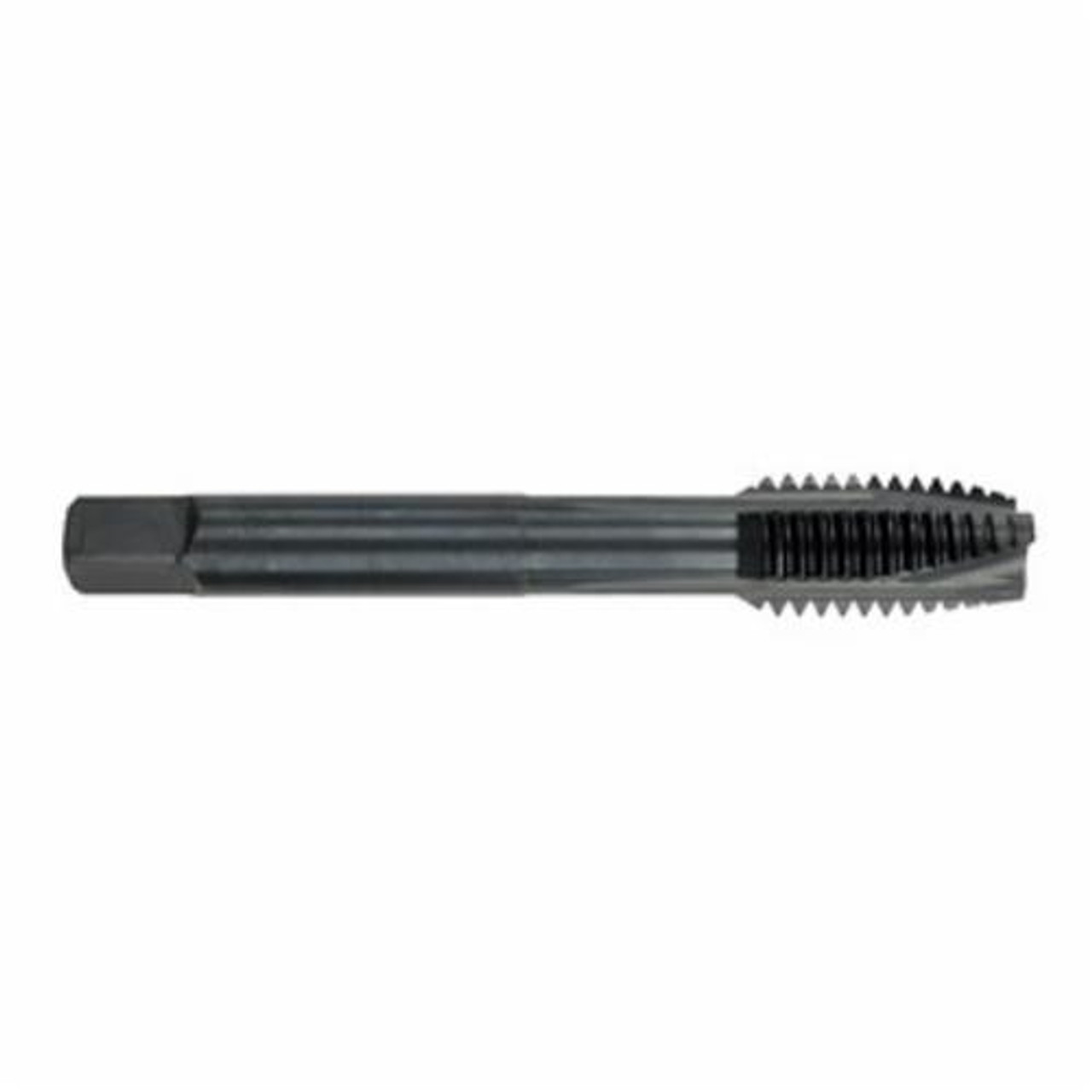

Spiral Point Tap, #10-32, Plug, Stainless Steels up to 35RC Hardness, Steel, Imperial, UNF, #10-32 Thread, Plug Chamfer, 3 -Flute, High Speed Steel, Right Hand Cut
These taps are primarily designed for tapping through holes, but can also be used in blind holes deep enough for chip accumulations in the bottom of the hole. The spiral point forces the chips ahead of the tap, thereby preventing clogging and recutting of chips. Long holes (more than 1-1/2 in diameter) can then be tapped. The taps can be used by hand or under power and are suitable for tapping most materials, especially those with high ductility. Each of the taps feature American National thread forms and a chamfer style with 3 to 5 threads.
Product Additional Info
Additional Tech Info
Product Documents
Product Videos
Custom Field
Feature Bullets 1 ShearTap™ offers exceptional value for high volume tapping
Feature Bullets 2 The geometry is optimized for long chipping steels and stainless steels up to a hardness of 35Rc
Feature Bullets 3 Made with premium high speed steel with an enhanced flute design, the ShearTap™ offer great chip management, cutting edge strength and wear resistance, resulting in a high quality threads
Feature Bullets 4 Spiral point taps are designed for machine tapping in through holes in a wide variety of materials
Feature Bullets 5 The point ejects the chips ahead of the tap, eliminating chip disposal problems and thread damage
Feature Bullets 6 Shallower flutes also result in greater tap core strength allowing for higher cutting speeds
Feature Bullets 7 Plug style (3 to 5 thread chamfer) is the most common chamfer used for tapping applications in through holes and blind holes with sufficient bottom clearance
Feature Bullets 8 Also reduces contact between the tap and the workpiece
Feature Bullets 9 Steam oxide over nitride features a hard abrasive resistant nitride base for enhanced tool life in abrasive materials including cast iron
Manufacture Name MORSE/MARXMAN CUTTING TOOLS
Package Quantity 1/Pack
RSC # 07408611
Thread Size #10-32
Unit of Measure EA
Web Item Flag S
Manufacture Part Number 34412
