Product Description

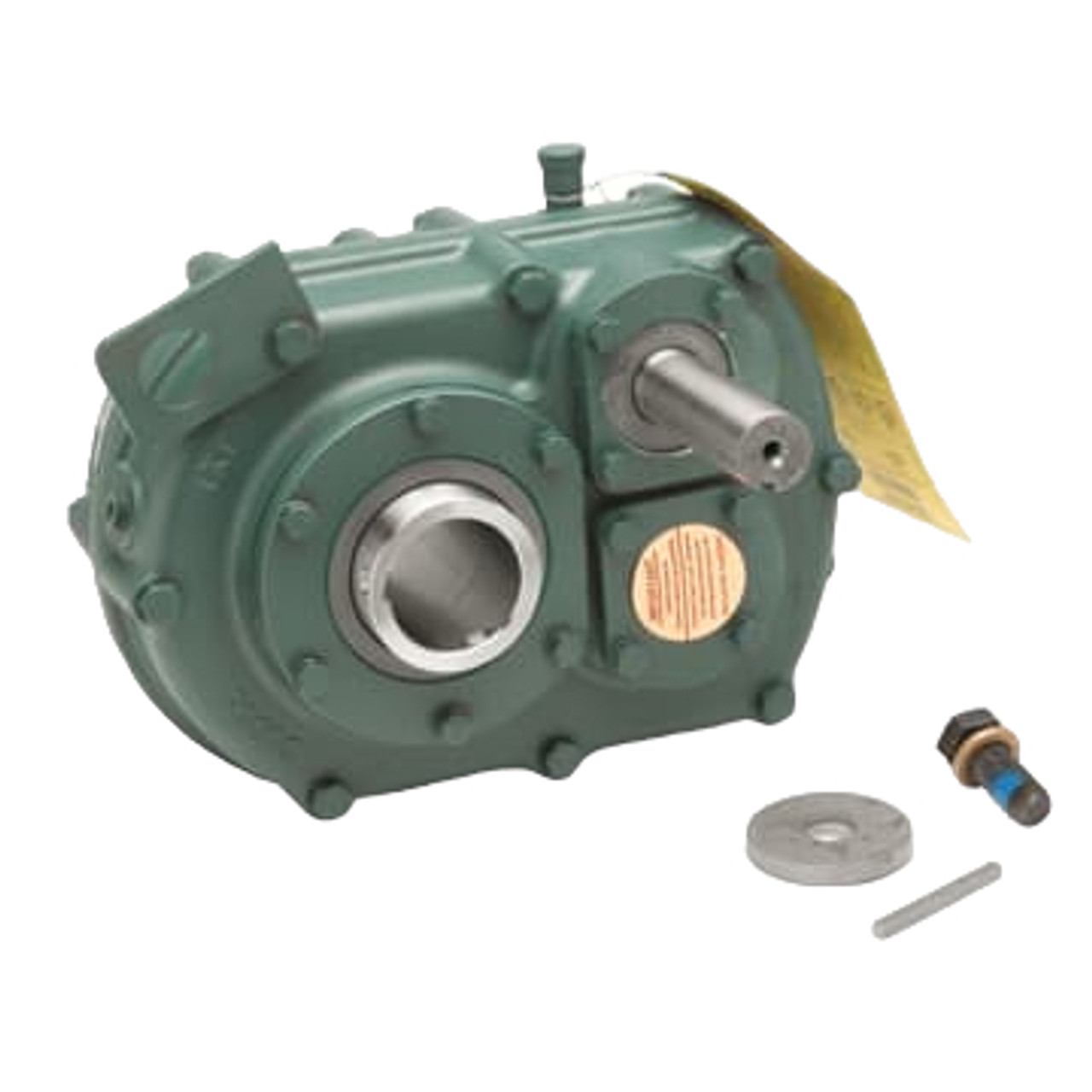

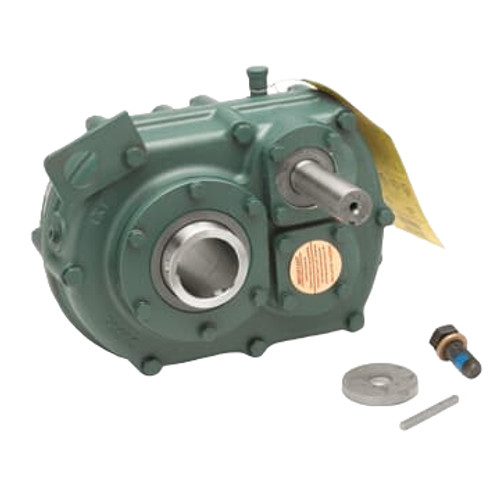

DODGE SCXT 325A Speed Reducer, Standard Double, 2100 rpm Input Max, 25:1 Gear, 12.7 hp, Shaft Input, Bore Output, 1-1/4 in dia Input, 2-3/16 in Output, Oil, Shaft Mount, Gray
Dodge® Torque-Arm™ (SCXT) is a helical gear reducer for screw conveyor applications. This unit mounts directly to the trough end of the screw, using the optional adapter and drive shaft. It offers a number of accessories available for the toughest application.
Product Additional Info
Additional Tech Info
Product Documents
Product Videos
Custom Field
Sub Brand Dodge
Country of Origin US
Feature Bullets 1 Heavy duty sealing system
Feature Bullets 2 Steel motor mount system
Feature Bullets 3 Screw conveyor trough end adapter
Feature Bullets 4 Pre-drilled drive shafts
Feature Bullets 5 Straight bore configuration with stock drive shafts for most CEMA designed screws
Feature Bullets 6 2100 rpm input/75 rpm output
Feature Bullets 7 Case size: 3
Feature Bullets 8 Size: SCXT3B
Manufacture Name ABB
RSC # 30101103
Standards ABMA, AGMA, ATEX, BSA, CEMA, EASA, MHI, MPTA, NEMA, NSSSGA, PTDA, ROHS, SME SWE, TUV
Unit of Measure EA
Manufacturer URL https://new.abb.com/products/7B243526/243526
Web Item Flag S
Manufacture Part Number 243526
UPC 782475690824
