Product Description

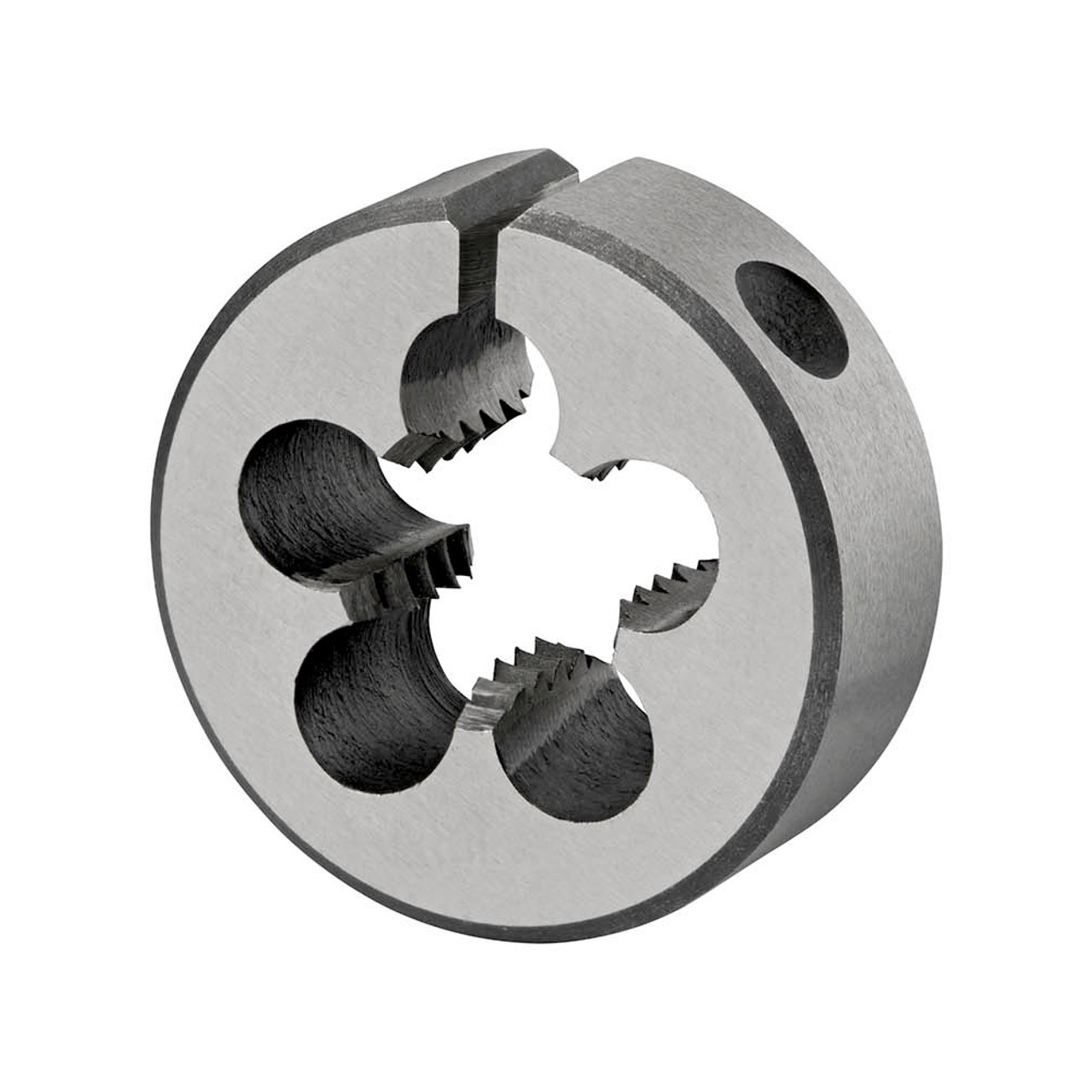

DORMER Round Die, Adjustable, 1/4 in Thk, 13/16 in OD Die, Right Hand Thread, High Speed Steel, Bright, Imperial, 1/4 in-28 Thread, UNF
Adjustable circular split die, for Unified National Fine thread UNF 1/4 in with 28 TPI, to reduce the torque when cutting by hand split dies can be adjusted in small increments up to a maximum of approximately 0.006 in, dimensions according to BS 1127:1950 standard with 13/16 in outside diameter and 1/4 in thickness, HSS with bright finish for threading in free machining and plain carbon steel, ferritic stainless steel and gray, malleable, ductile and compacted graphite cast-iron.
Product Additional Info
Additional Tech Info
Product Documents
Product Videos
Custom Field
Sub Brand Union Butterfield
Die Outside Diameter 13/16 Inch
Feature Bullets 1 Round adjustable dies can be closed down by approximately 0.006 in on diameter
Feature Bullets 2 Bright finish improves chip flow in soft or non-ferrous materials
Feature Bullets 3 Higher heat resistance as compared to high speed steel
Feature Bullets 4 It offers good machinability, wear resistance and toughness
Manufacture Name DORMER PRAMET
Package Quantity 1/Pack
RSC # 07104159
Standards BS1127:1950
Thread Size 1/4 Inch-28
Unit of Measure EA
Manufacturer URL https://www.dormerpramet.com/us/en_US/p/5978765
Web Item Flag S
Manufacture Part Number 5978765
