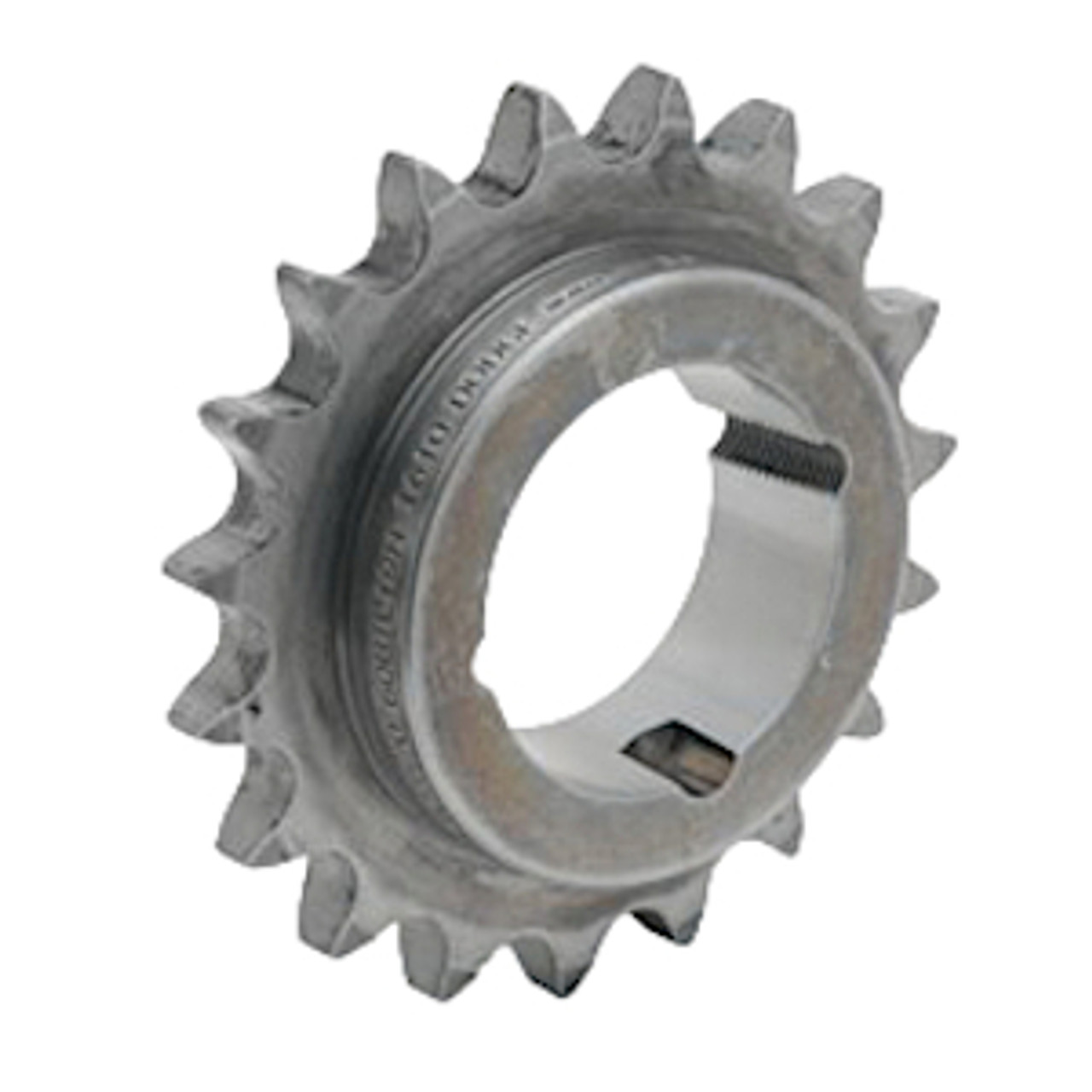

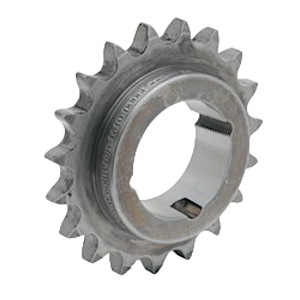

DODGE TLB615H Roller Chain Sprocket (use 1610 Bushing), Type BTL, Single Strand, 3.978 in od, #60 Chain, 15 -Teeth, 3.608 in Dia Pitch, 2.94 in Dia Hub, 1 in Lg Thru Bore, Low Carbon Steel
Roller chain drives have the ability to handle high shock loads and deliver dependable performance make them the drive of choice for many applications. Dodge® Taper-Lock® sprockets require no expensive or time-consuming re-matching. Their taper-bushing mount automatically compensates for variations in shaft and sprocket machining tolerances. With Dodge® Taper-Lock® sprockets, there are no protruding flanges or screw-heads to take up valuable shaft space. Their compact design provides for more power-dense packages.
Product Additional Info
Additional Tech Info
Product Documents
Product Videos
Custom Field
Sub Brand Dodge
Bore Size 1/2 Inch
Country of Origin US
Feature Bullets 1 No slip transmission
Feature Bullets 2 Minimal overhung load on shaft bearings
Feature Bullets 3 Generally used in lower speed ranges
Feature Bullets 4 Low cost and rugged performance
Feature Bullets 5 Compact drive design
Feature Bullets 6 Installs easily
Feature Bullets 7 Fits shaft securely
Feature Bullets 8 Allows exact ratio and rating required for your operation
Feature Bullets 9 Installation-ready, right from the box
Manufacture Name ABB
Number Of Teeth 15
Outside Diameter 3.978 Inch
RSC # 31800615
Standards ANSI
Unit of Measure EA
Web Item Flag S
Manufacture Part Number 100566
UPC 782475048991
