Product Description
Metal Hose, Unbraided, 1/2 in, 0.73 in od, 75 psi Working, 3 in Static, 5 in Dynamic Bend Radius, 70 deg F, T316L Stainless Steel, 1/2 in Id

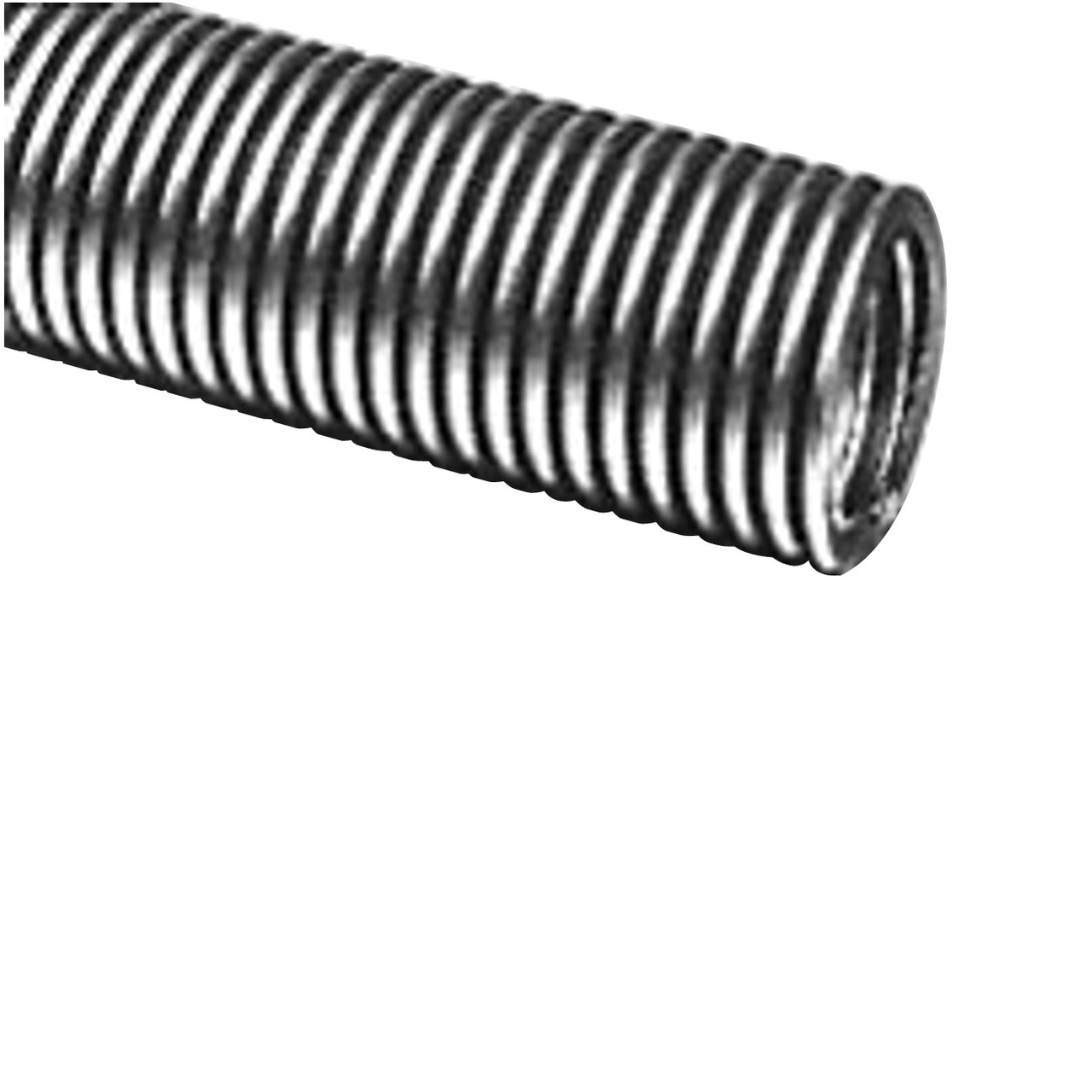

OmegaFlex’s Series 100 is a helical, stainless steel, standard pitch hose. Its pressure capabilities range from full vacuum to the limits listed below. Its temperature rating ranges from cryogenic to 1500 deg F, and it has a unique self-draining capability found only in helical hoses.
Product Additional Info
Additional Tech Info
Product Documents
Product Videos
Custom Field
Feature Bullets 1 Pressure capability includes full vacuum to pressures shown below
Feature Bullets 2 Consult Temperature Correction Table on page 39 for concurrent high temperature/high pressure applications
Feature Bullets 3 Hose corrugation designs include Standard Pitch, Open Pitch and Superflex. Contact OmegaFlex for specifications on Open Pitch and Superflex
Feature Bullets 4 Unique self-draining found only in helical corrugations
Manufacture Name OMEGA FLEX
Nominal Size 1/2 in
RSC # 70300208
Unit of Measure FT
Hose Length 30 to 100 Feet
Manufacturer URL https://www.omegaflex.com/product-specifications/stainless-helical-hose/
Web Item Flag S
Manufacture Part Number 103-SP0050
