Product Description

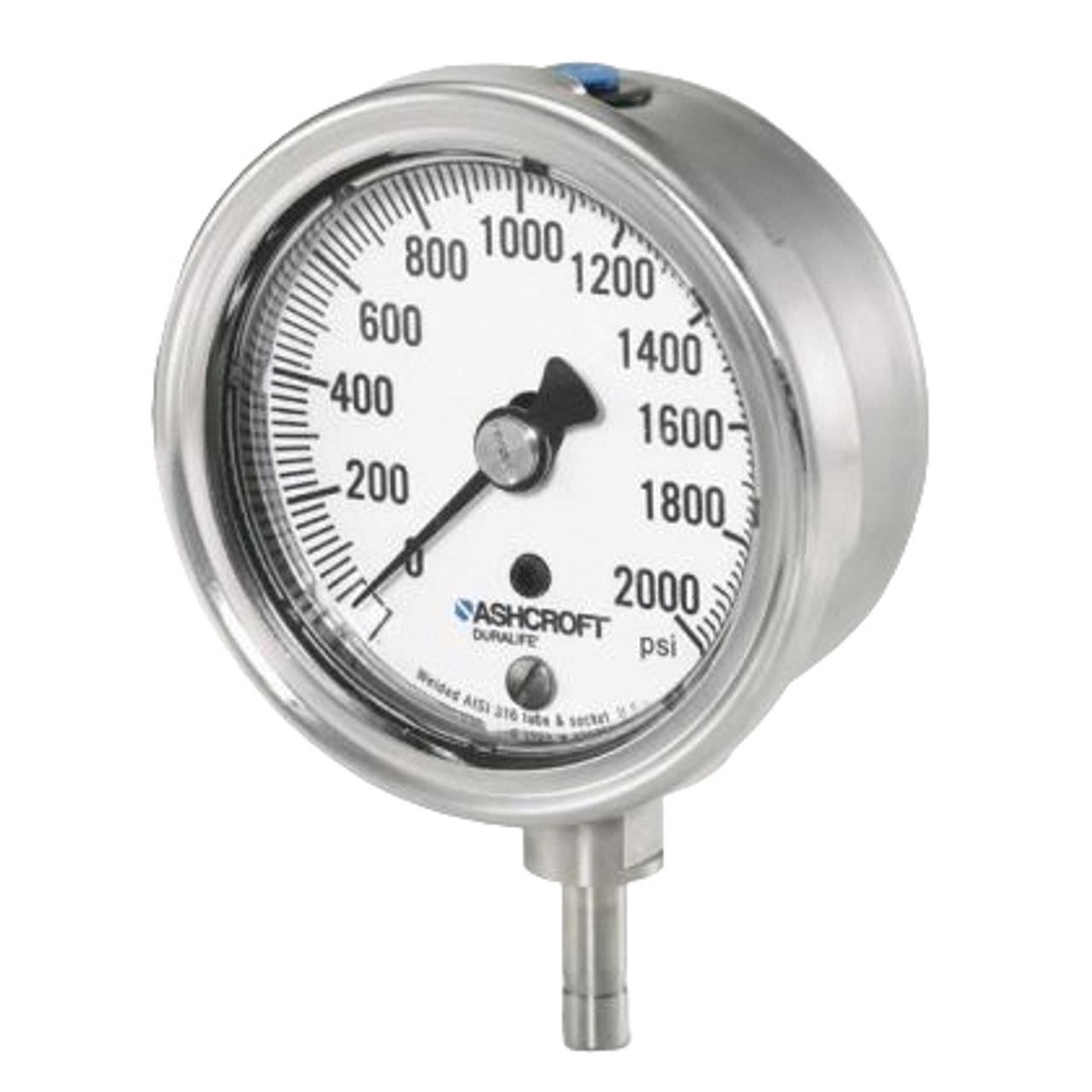

Mechanical Pressure Gauge, Dry, 2000 psi, 1/4 in MNPT, 2-1/2 in Dia Dial, +/-1%, 0.2 psi, Dial Display, -40 to 150 deg F, Stem Mount, 2-3/4 in dia, 1-1/4 in dp
The Ashcroft® 1009 steel case pressure gauge offers exceptional quality, durability, and performance. The removable bayonet ring allows the user easy access for minor adjustments. An ideal choice for satisfying most applications and installation requirements.
Product Additional Info
Additional Tech Info
Product Documents
Warranty Information
5 YearsProduct Videos
Custom Field
Dial Diameter 2 1/2 Inch
Feature Bullets 1 PowerFlex™ movement provides superior resistance to shock, vibration and pulsation extends product life and reduces maintenance costs
Feature Bullets 2 True Zero™ reduces reading errors by using a “zero box” instead of conventional dial pins (posts) this ensures product safety, integrity and system control
Feature Bullets 3 PLUS™ Performance option dampens vibration, shock and pulsation effects
Feature Bullets 4 Field Fillable
Feature Bullets 5 Meets ASME B40.100 specifications
Feature Bullets 6 All welded stainless steel construction
Feature Bullets 7 MSL helium leak tested to 1X10-6 scc/s
Feature Bullets 8 Ventable fill plug
Feature Bullets 9 Wide selection of connections
Manufacture Name ASHCROFT
Package Quantity 1/Pack
Pressure Range 2000 psi
RSC # 14701354
Standards ASME, CE, CRN
Unit of Measure EA
Manufacturer URL https://www.ashcroft.com/products/pressure/pressure-gauges/1009-25-35-pressure-gauge/
Web Item Flag S
Manufacture Part Number 25-1009SWL 02L 2000 DNR
