Product Description

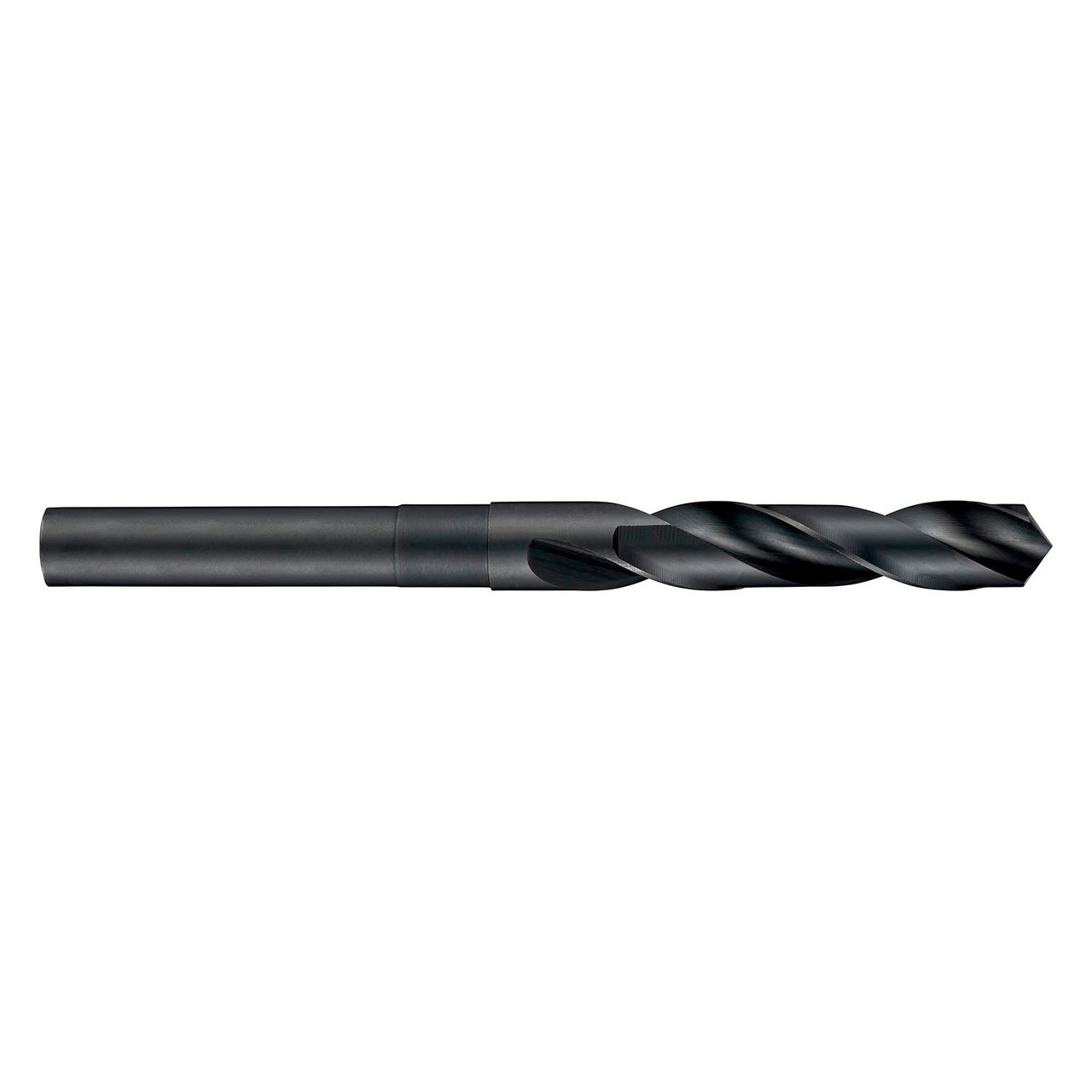

Jobber Length Drill Bit, Type N, General Purpose, Imperial, 51/64 in Drill, 20.24 mm Drill, 0.7969 in Drill, 152.4 mm Lg, 3 in Dp Cut, 2 -Flute, Spiral Flute
Standard length drill with 1/2 in reduced straight shank, diameter 0.7969 in (51/64) with an overall length of 6 in and flute length of 3 in according to DORMER standard with 118 deg point angle, HSS with steam tempered finish for 4xD drilling without pecking in steel.
Product Additional Info
Additional Tech Info
Product Documents
Product Videos
Custom Field
Country of Origin US/CA
Drill Size - Fraction 51/64 Inch
Feature Bullets 1 4 x D usable tool depth to diameter ratio
Feature Bullets 2 High speed steel (HSS) provides good wear resistance and can be used in general purpose applications on both ferrous and non-ferrous materials
Feature Bullets 3 Oxide coating prevents chip building, galling and welding on the workpiece
Feature Bullets 4 It is commonly used on low carbon metals, stainless steel and ferrous metals
Manufacture Name DORMER PRAMET
RSC # 07102753
Unit of Measure EA
Drill Size - Decimal Inch 0.7969 INCH
Drill Size - Metric 20.2400 MILLIMETER
Manufacturer URL https://www.dormerpramet.com/us/en_US/p/5968853
Web Item Flag S
Manufacture Part Number 5968853
