Product Description

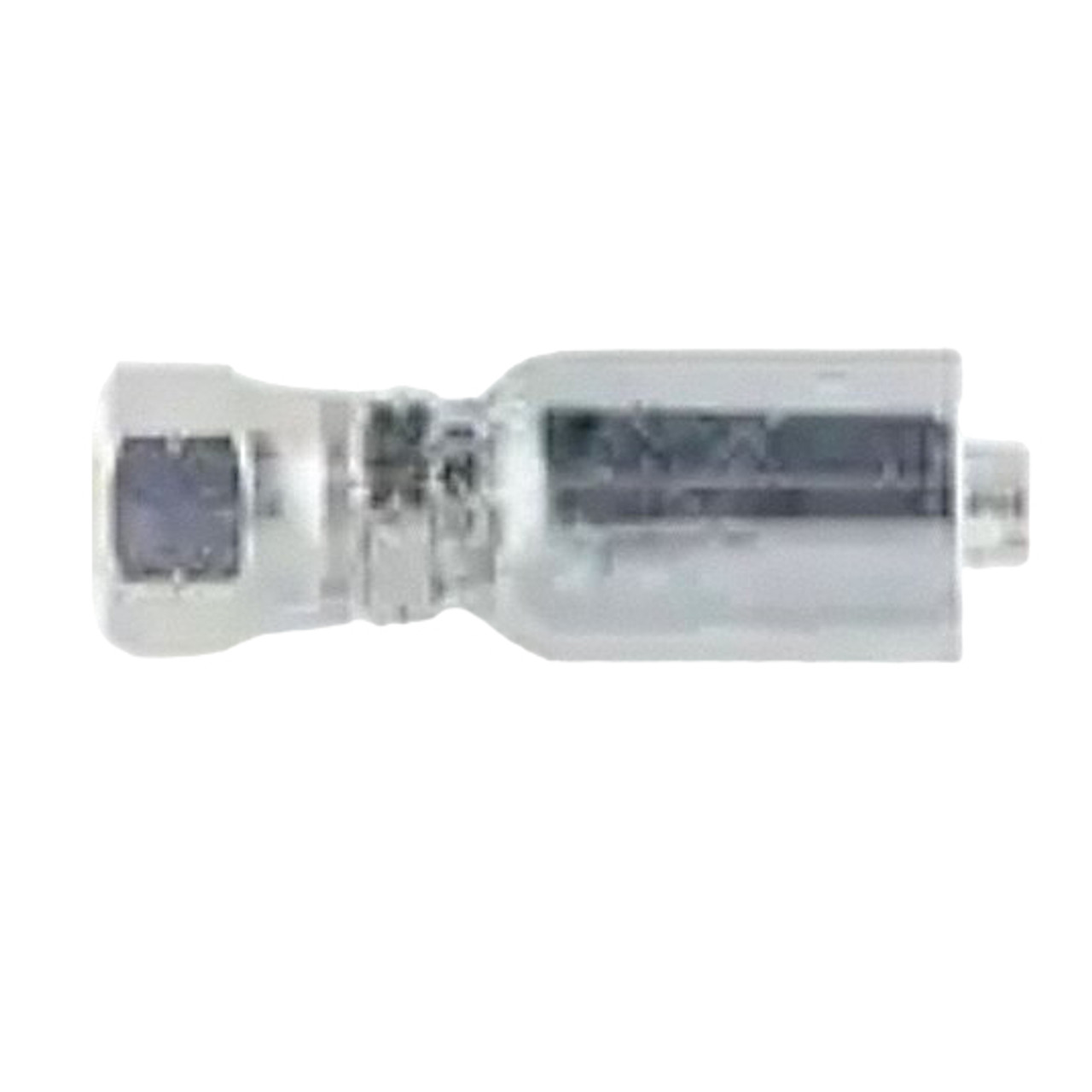

Hydraulic Hose Fitting, Crimp Style, Straight, 1 in Hose, 1 in-11-1/2, FNPSM Swivel 60 deg Cone End, 1-3/8 x 1-1/2 in Hex, 3.39 in Lg, 1.78 in Cutoff Allowance
Parker's HY Series fittings are cost-effective, permanent, compression-style crimp hydraulic fittings made for easy and quick assembly with Parkrimp crimpers. When coupled with Parker's No-Skive hoses, HY Series fittings provide convenience and shorter assembly time. Compatible with hydraulic industry standard hoses such as Parker Hydraulic/Braided hoses, HY series fittings feature Chromium-6-free plating. Available in a wide variety of end configurations, HY Series fittings are offered in sizes ranging from 1/4 to 1-1/4 in.
Product Additional Info
Additional Tech Info
Product Documents
Product Videos
Custom Field
Connection Size 1 Inch-11-1/2
Country of Origin US
Cutoff Allowance 1.78 Inch
Feature Bullets 1 Easy push on force
Feature Bullets 2 Imperial Hex
Feature Bullets 3 Wide range of end configurations
Feature Bullets 4 One piece reduces complexity and leakage path
Feature Bullets 5 No-Skive technology offers easy, efficient and safe production processes
Length 3.39 Inch
Manufacture Name PARKER HANNIFIN
Material Steel
Package Quantity 10/Pack
RSC # 74401716
Unit of Measure EA
Vendor number 6308
Hose Size 1 Inch
Manufacturer URL https://ph.parker.com/us/en/product/hy-series/107hy-16-16
Prop 65 WARNING: This product can expose you to chemicals, including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov
Web Item Flag S
Manufacture Part Number 107HY-16-16
