Product Description

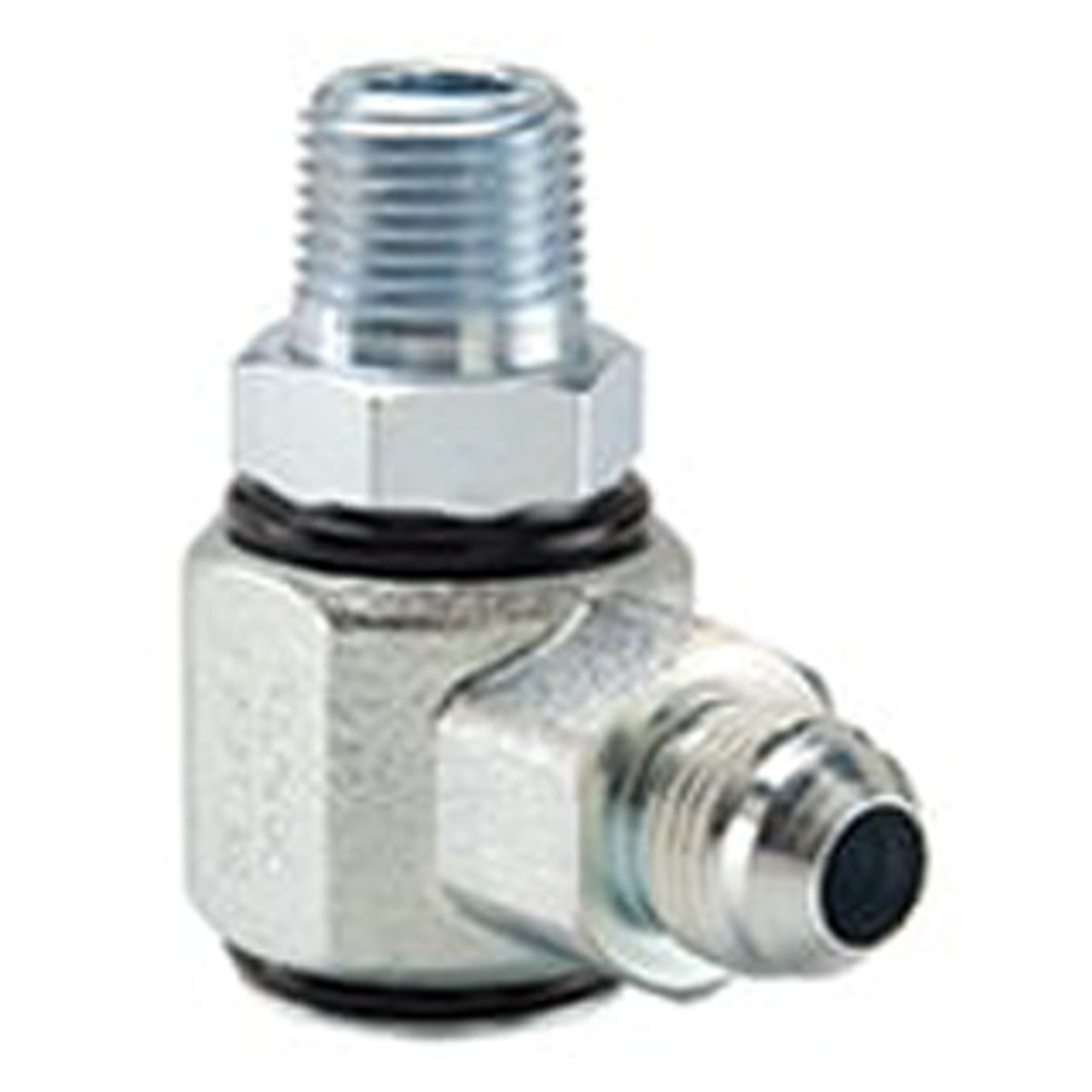

PARKER Hydraulic Elbow, S Series, High Pressure, 3/4-14 x 1-1/16-12 in, Male JIC 37 deg x MNPT End, 90 deg, 34.9 mm Hex, 3.35 in Lg, 3000 psi, -40 to 250 deg F, Steel
S Series Swivels (hydraulic or pneumatic) up to 3000 psi, are designed to eliminate hose twist and torque that may contribute to premature hose failure. These 90 deg Swivels have a pressure balanced design in a compact, forged body. As a result of the pressure balanced design, the S Series Swivel does not experience a significant increase in torque as pressure rises. A wide variety of port options are available for both the housing and shaft ends. Maximum rotation speed is 10 rpm.
Product Additional Info
Additional Tech Info
Product Documents
Product Videos
Custom Field
Country of Origin US
Feature Bullets 1 Pressure balanced design allows swivel movement to be minimally affected by internal fluid pressure
Feature Bullets 2 Forged body is compact to fit into confined spaces
Feature Bullets 3 Case hardened for extended service life
Feature Bullets 4 Eliminates hose twist and torque caused by the movement of working equipment
Length 3.35 Inch
Manufacture Name PARKER HANNIFIN
Nominal Size 3/4 Inch-14 x 1-1/16 Inch-12
RSC # 79800012
Standards ISO
Unit of Measure EA
Manufacturer URL https://ph.parker.com/in/en/product/swivels-hydraulic-up-to-3000-psi-s-series/s2103-12-12
Web Item Flag S
Manufacture Part Number S2103-12-12
