Product Description

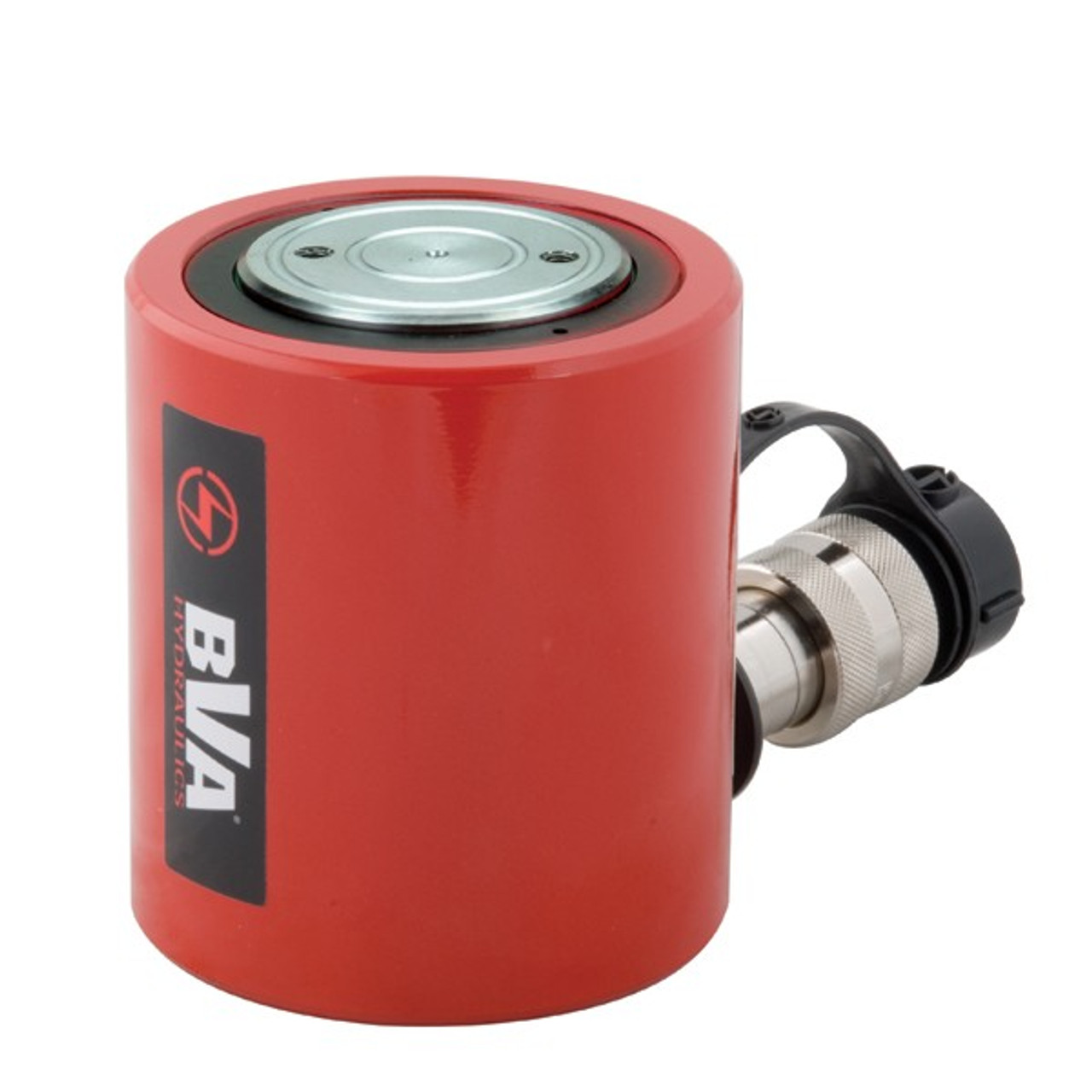

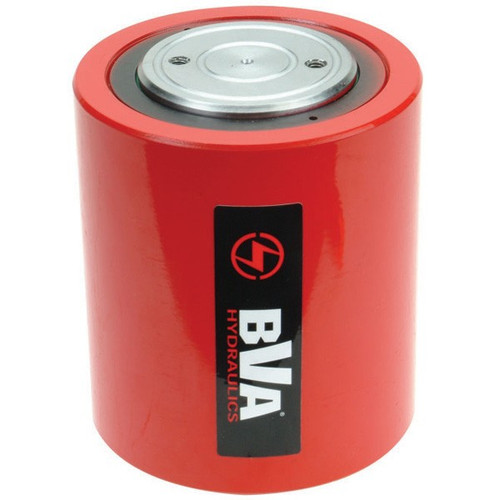

Hydraulic Cylinder, Single Acting, Low Profile, 2.44 in Lg Stroke, 6.49 in Effective Area Clamped, 15.84 cu-in, 7.05 in Ht Extended, 9245 psi, Steel
BVA Hydraulics low profile cylinders work at max. 10000 psi (700 bar), design in compact for use in confined spaces. Rod wiper helps seal out dirt and contamination, equiped with special return springs provide quick retraction and extend the service life. Hard chrome plated piston rod helps prevent scratching and corrosion. Rod end is grooved to reduce load slippage. All BVA cylinders come equipped with a CH38F high flow coupler with dust cap.
Product Additional Info
Additional Tech Info
Product Documents
Product Videos
Custom Field
Extended Height 7.05 Inch
Feature Bullets 1 Compact design for use in confined spaces
Feature Bullets 2 Rod wiper seals out dirt and contaminations
Feature Bullets 3 Specially designed rectangular return spring ensures smooth retraction and long life
Feature Bullets 4 Industrial hard-chrome plated ram eliminates scratching and corrosion
Feature Bullets 5 Plunger end grooved to reduce load slippage
Feature Bullets 6 Includes high-flow ball coupler and dust cap
Feature Bullets 7 Full compliance under ANSI B30.1 standards
Manufacture Name BVA HYDRAULICS
RSC # 37507240
Stroke Length 2.44 Inch
Unit of Measure EA
Manufacturer URL https://bvahydraulics.com/product/HL3002
Manufacture Part Number HL3002
