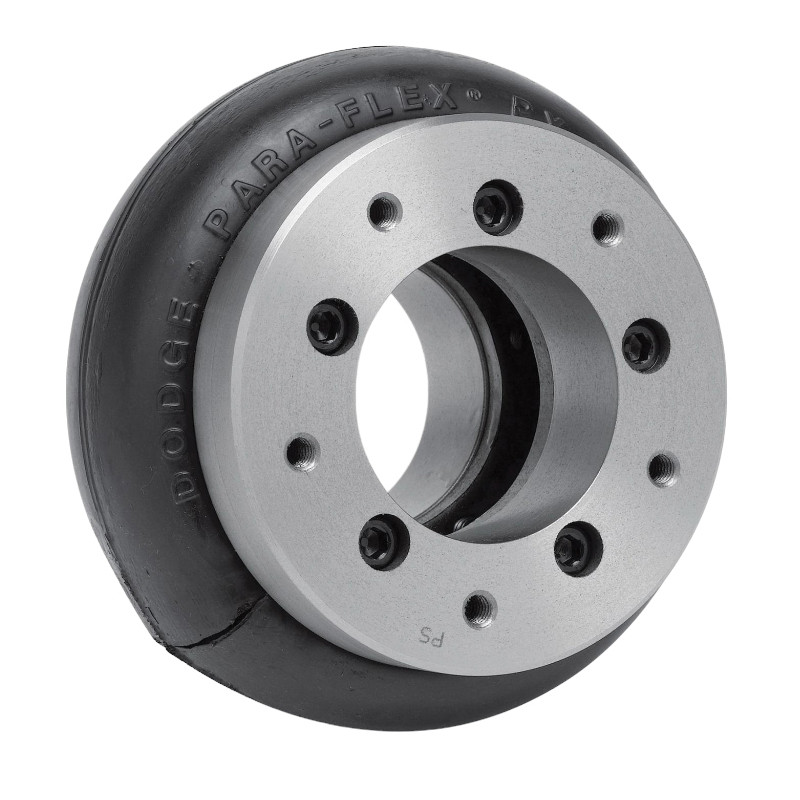

DODGE PS90X5 Coupling Center Assembly, Spacer Tier, 5 in Dia Bore, 9-1/4 in od, 10 in Lg, 2800 rpm Max, -45 to 180 deg F, Natural Rubber

PARA-FLEX Couplings employ a molded, non-lubricated elastomeric flexing member loaded in shear. The flexible element is compounded natural or neoprene rubber with textile cord reinforcement throughout and has an extra layer of reinforcement adjacent to the split for added durability. The compound of natural rubber element shall be suitable for operation in ambient temperature from -45 to +180 deg F; Neoprene -40 to +210 deg F. The flexible element is attached by clamping between axially separable rings with exposed cap screws. The couplings are designed to be capable of accommodating combined misalignments of 4 in angular, 1/8 in parallel and 5/16 in end float at the full rating of the coupling without restricting the life of the coupling. The flexible element must be replaceable without disturbing the coupled equipment and without the requirement for realignment. The coupling assemblies have optional methods of attachment to the shaft including but not limited to: clearance fit, interference fit TAPER-LOCK or QD bushings. Clearance fits are supplied with an industry standard keyway and two set screws, one over the key and one at 65 deg.
