Product Description

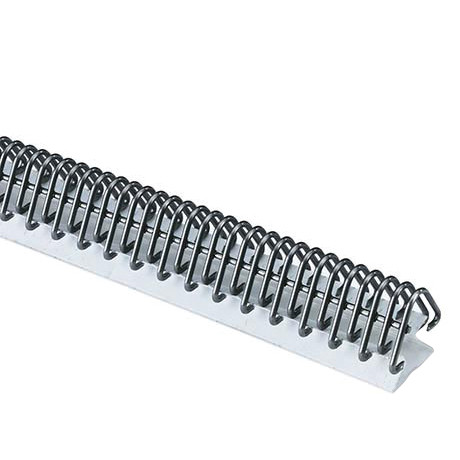

Conveyor Belt Lacing, Size U3-1 Unibar® Hook, 12 in Lg, 1/8 to 5/32 in Thk Belt, 430 Stainless Steel, 3 in Min Dia Pulley
Since its inception, the Clipper® Wire Hook System has earned a reputation for continued innovation and proven performance. Clipper wire hooks have been designed with a variety of different wire diameters, leg and point lengths, metals, strip lengths and styles, such as Unibar® and carded. All are readily available to meet your individual application needs. The double-staggered grip pattern gives wire hooks exceptional holding power without degrading the integrity of the belt carcass. Today’s splices also have a very low profile, making them increasingly more compatible with conveyor components and compliant with the need for reduced operating noise.
Product Additional Info
Additional Tech Info
Product Documents
Product Videos
Custom Field
Sub Brand Clipper
Belt Thickness 1/8 to 5/32 Inch
Feature Bullets 1 Low-profile design is conveyor component compatible
Feature Bullets 2 Quiet operation when contacting pulley and other conveyor components
Feature Bullets 3 Double-staggered grip pattern offer exceptional holding power, does not degrade integrity of belt
Feature Bullets 4 Quick, economical installation
Feature Bullets 5 Unibar® Fasteners-welded to a common bar to enhance installation safety and ease meshing of belt ends
Feature Bullets 6 Design: individual clipper hooks welded to a common bar
Feature Bullets 7 Approximate hinge pin diameter: 0.093 to 0.156 in (2.4 mm to 4 mm)
Feature Bullets 8 0.054 in (1.4 mm) dia Wire
Feature Bullets 9 Applied machine Installation method
Length 12 Inch
Manufacture Name FLEXCO
Material 430 Stainless Steel
Minimum Pulley Diameter 3 Inch
Package Quantity 12 Cards or Strips/Box
RSC # 83702027
Unit of Measure BX
Manufacturer URL https://www.flexco.com/EN/Product/2749/U3-1S12.htm
Web Item Flag S
Manufacture Part Number 01144
UPC 697598011442
