Product Description

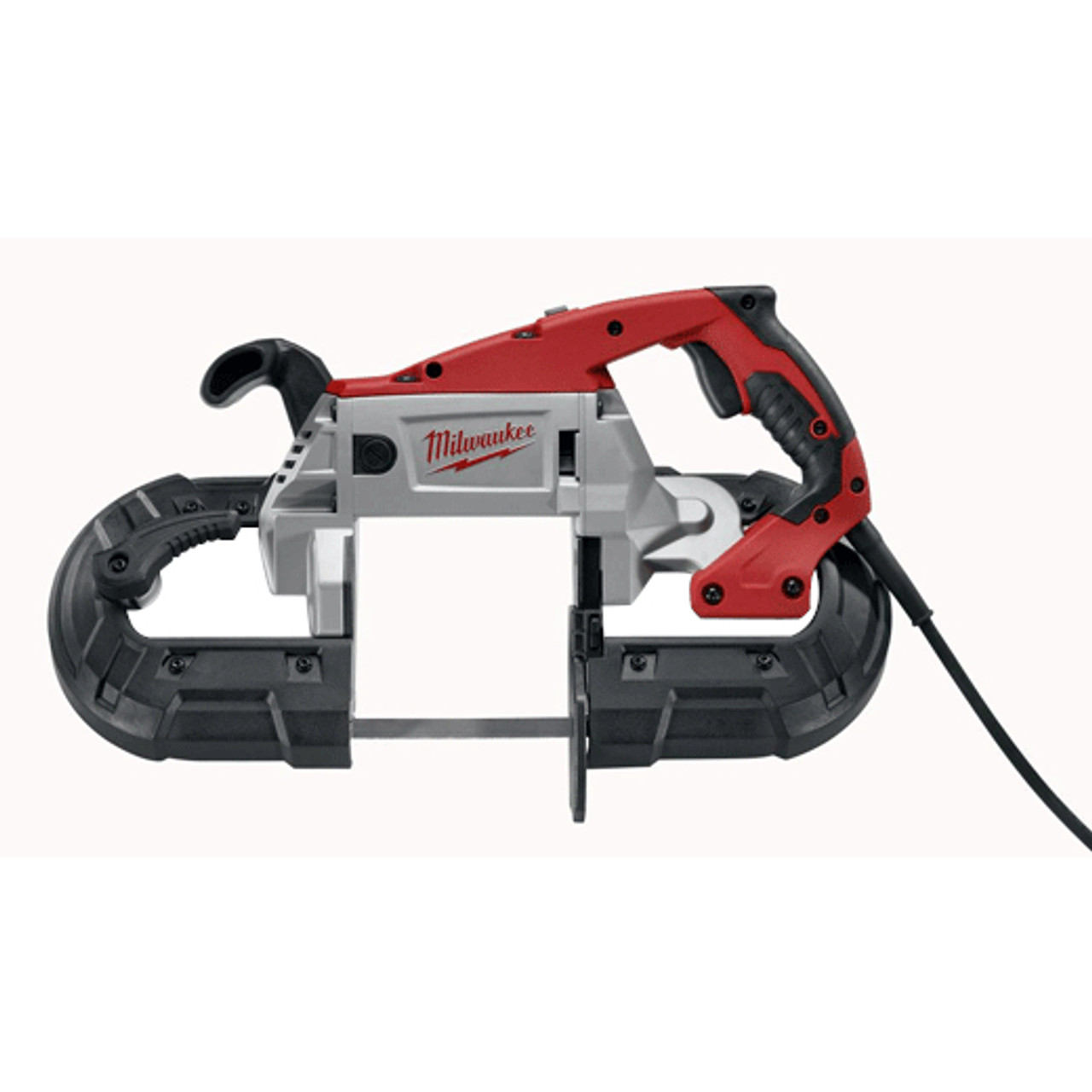

Band Saw, Deep Cut, Tool, 5 x 5 in, 1/2 in wd, 44-7/8 in lg Blade, 350/250 fpm, 300/380 SPM, 120 VAC, 11 A, Metal Housing, Grounded Cord, On/Off Trigger Switch
The new Deep Cut Band Saws deliver 2X more durability, best-in-class power at 11 A, revolutionary cut visibility and the industry’s largest cut capacity at 5 in by 5 in, These Band Saws still deliver on the heritage of long-term reliability and performance that make Milwaukee Band Saws the standard in industrial metalworking, but now feature a new, exclusive Job Site Armor™ Technology and all metal direct drive system that provide game-changing durability. The Job Site Armor™ Technology is made of a proprietary composite material and has crush zone barriers that provide long lasting rugged protection. The all metal direct drive gearing system delivers maximum tool life, while requiring less servicing than a chain drive. In addition, a gear protecting clutch extends gear and motor life by absorbing high impact forces caused by blade lock-ups and a new debris protection system delivers longer pulley life by removing debris during use. The new Band Saw's slimmer motor housing increases user line of site delivering superior cut accuracy and revolutionary cut visibility, while a new balanced body design allows tool to rest naturally and comfortably in the users hands. At 14.5 lb, this lighter weight design delivers more control over the tool and less fatigue at the conclusion of the work day. Another innovative feature is the tool-free locking adjustable shoe, which is a button actuated tool-free design that allows the user to quickly adjust from an extended shoe to no shoe in seconds.
Product Additional Info
Additional Tech Info
Product Documents
Product Videos
Custom Field
Country of Origin CN
Feature Bullets 1 Powerful 11 A motor: provides maximum performance and durability
Feature Bullets 10 Debris protection system: delivers longer pulley life by removing debris during use
Feature Bullets 2 All metal direct drive: delivers maximum tool life with all metal direct drive gearing system, while requiring less servicing than a chain drive
Feature Bullets 3 Revolutionary cut visibility: slimmer motor housing increases user line of site delivering superior cut accuracy
Feature Bullets 4 Lighter Weight, 14.5 Lb delivers more control over the tool and less fatigue at the conclusion of the work day
Feature Bullets 5 Industry's Largest Cut Capacity: Versatility to cut up to 5 in by 5 in material in one pass and adjustable shoe allows for less tool rotation when cutting material above 5 in
Feature Bullets 6 Job site Armorâ„¢ technology: proprietary composite material and crush zone barriers provide long lasting rugged protection
Feature Bullets 7 Gear Protecting Clutch: Extends gear and motor life by absorbing high impact forces caused by blade lock-ups
Feature Bullets 8 Balanced body design: allows tool to rest naturally and comfortably in users hands
Feature Bullets 9 Tool-free locking adjustable shoe: button actuated tool-free design allows user to quickly adjust from an extended shoe to no shoe in seconds
Manufacture Name Milwaukee Tool
RSC # 08306226
Standards ETL, UL
Unit of Measure EA
Web Item Flag S
Manufacture Part Number 6238-20
UPC 045242237234
