Product Description

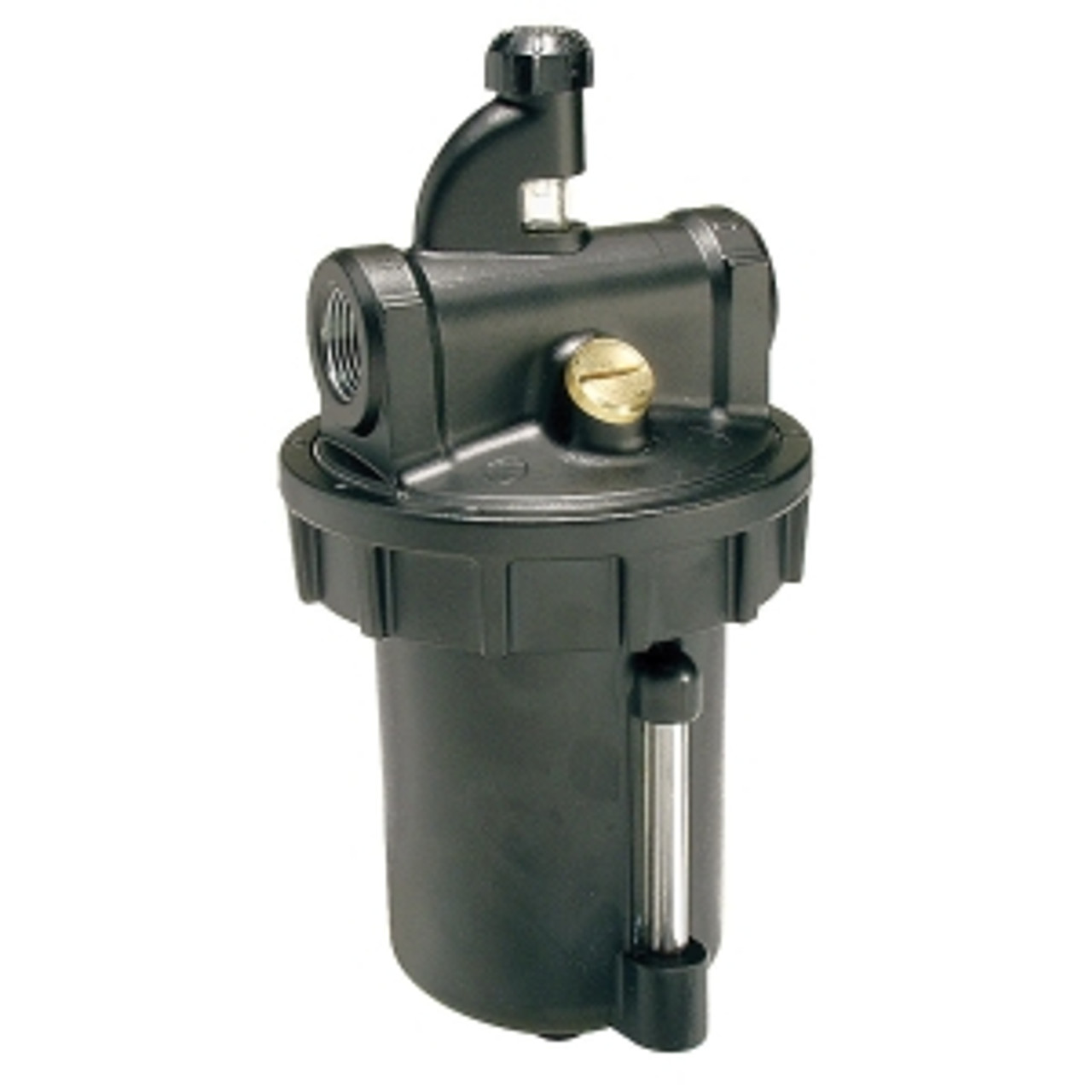

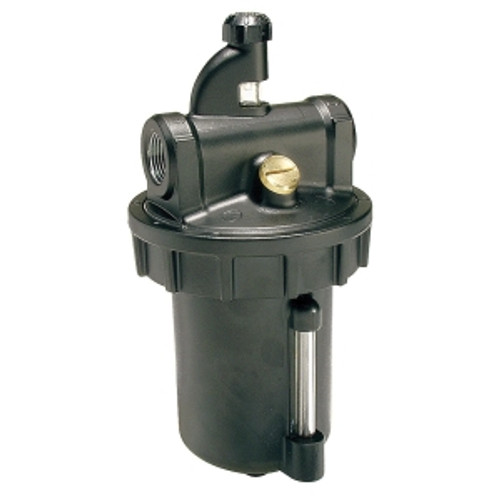

Air Lubricator, General Purpose, 3/4 in NPT Port, 325 scfm, 250 psi, Metal Bowl, 40 to 150 deg F, Zinc
Parker's L606 Series Lubricators feature a large 16oz capacity metal bowl that can be filled while the air line is under pressure in addition to a sight gauge and polycarbonate sight dome. It also features a precision needle valve assuring repeatable oil delivery and provides a simple adjustment of delivery rate. The L606 Lubricator also allows proportional delivery over a wide range of air flows with a flow rate of 325 SCFM and operating pressure between 0 and 250 PSI.
Product Additional Info
Additional Tech Info
Product Documents
Warranty Information
LimitedProduct Videos
Custom Field
Sub Brand Dixon
Feature Bullets 1 Metal bowl with sight gauge-standard
Feature Bullets 2 Bowl can be filled while air line is under pressure
Feature Bullets 3 Proportional oil delivery over a wide range of air flows
Feature Bullets 4 Large capacity bowl
Feature Bullets 5 Precision needle valve assures repeatable oil delivery and provides simple adjustment of delivery rate
Feature Bullets 6 Automatic fill optional (requires external pressurized oil supply)
Manufacture Name PARKER HANNIFIN
Package Quantity 1/Box
RSC # 15103906
Unit of Measure EA
Vendor Name LIVINGSTON & HAVEN
Vendor number 5152-1
Port Size 3/4 Inch NPT
Web Item Flag S
Manufacture Part Number L606-06WH/M8
